If you enjoy off-road racing and look to get extra power out of your ride, diesel engine tuning is a possible avenue. The Mini Maxx series tuners are the perfect tools for the job, allowing diesel-engine trucks to achieve better torque and horsepower and even optimize fuel efficiency.
But as with any tool, you need to pick the right one for the job. And if you want to learn about the features, vehicle compatibility, and get other useful tips, read the full guide and comparison below.
What Is a Mini Maxx Tuner?
Mini Maxx tuners are tuning devices for diesel trucks. They let you modify engine parameters by reflashing or updating your engine ECU with preloaded tuning profiles (tunes). You install and connect the tuner to your truck, set it up, and enjoy elevated performance.
The series supports the following engines:
- Ford Powerstroke
- Chevy/GMC Duramax
- Dodge/RAM Cummins
What Does the Mini Maxx Tuner Do?
The tuner plugs into your truck’s OBD port and reprograms the ECU. It removes restrictions tied to the diesel emission system and unlocks more horsepower. The tuner doubles as a live monitor, displaying boost pressure, temps, and other key vitals in real time.
The entire series has the Shift-on-the-Fly (SOTF) functionality, allowing power level changes without pulling over and reflashing. To do that, you need to purchase a switch, different for each make and engine:
The tuner also allows the ECU to disable exhaust control systems, suppressing check engine light and fault codes after the hardware has been physically removed.
What Tuner Types are Available?
These DPF delete tuners have two variants: V1 and V2. The first iteration is ideal for older, pre-2013 vehicles. It’s a good, reliable choice if you need a quick and easy tune. The V2 version offers more advanced features and is compatible with a broader range of vehicles, including new trucks up to 2021. It has a more modern UI and slightly better software.
Mini Maxx V1 vs. V2: Vehicle Compatability
To ensure your vehicle functions properly, you need to verify diesel tuner compatibility. Using the wrong one can result in failed tuning, ECU communication errors, and other issues.
Use this table to determine which tuner to pick:
| Brand | Engine | V1 Coverage | V2 Coverage | Notes |
|---|---|---|---|---|
| Ford | ||||
| 6.0L Powerstroke | 2003-2007 | Not supported | V1 only – relies on older ECU protocols | |
| 6.4L Powerstroke | 2008-2010 | 2008-2010 | Both versions perform well. Considered to be the most stable solution | |
| 6.7L Powerstroke | 2011-2014 | 2011-2019 | V2 extends support to 2019 F250/F350 2016 models may trigger PCV sensor code | |
| 3.0L Powerstroke | Not supported | Not supported | Both versions incompatible | |
| RAM | ||||
| 5.9L Cummins | 2006-2007 | Not supported | V1 is a rare choice for 5.9 Cummins | |
| 6.7L Cummins | 2007.5-2012 | 2007.5-2021 | 2018+ trucks need an SGW bypass cable to install V2 | |
| GM/Chevy | ||||
| 6.6L Duramax LLY/LBZ | 2006-2007 | Not supported | Pre-LLM platforms are not supported | |
| 6.6L Duramax LMM | 2007.5-2010 | 2007.5-2010 | Hardware compatibility is identical | |
| 6.6L Duramax LML | 2011-2014 | 2011-2016 | V2 adds 2015-2016 with improved stability, but no SOTF compatibility | |
| 2.8L Duramax | Not supported | Not supported | No compatibility; look for other tuners like EZ Lynk | |
| Nissan | ||||
| 5.0L Cummins | Not supported | Not supported | No compatibility; look for other tuners like EZ Lynk | |
Mini Maxx V1 vs. V2: Comparison and Features
Both versions offer the same features: OBD-II plug-in installation, pre-loaded delete tunes, live monitoring, and SOFT switching. The actual differences are first noticeable during installation, where the V1 is the more forgiving of the two.
But if we were to summarize, these are the core distinctions:
| Feature | Mini Maxx V1 | Mini Maxx V2 |
|---|---|---|
| Hardware and installation | ||
| installation | OBD-II plug-in; hardware-driven | OBD-II plug-in and bypass cable (on some models) |
| Setup Complexity | Easy and forgiving of errors | High with strict SD card format required |
| Tuning & Performance | ||
| Peak HP gains | Up to 175 hp* | Up to 250 hp* |
| Shift-on-the-Fly | Many platforms supported | Most platforms (e.g does not support Duramax LML) |
| Compatability | ||
| Vehicle Range | 2003-2014 for older ECU architectures | 2007.5-2021 with broader coverage, and a strong performance boost on RAM and Ford |
| Older Platforms | Supported (Ford 6.0L, Duramax LLY/LBZ) | Not supported (doesn’t cover pre-LLM Duramax or 5.9l Cummins) |
| Newer Platforms | Limited with no support for 2013+ RAM or 2015+ Powerstroke | Covers 2013-2021 RAM, 2008-2019 Powerstroke, and 2011-2016 LML |
*All horsepower figures are estimates. Please refer to the user manual for detailed specifications.
Mini Maxx V1 vs. V2: Tuning Capabilities
Tuning is easy and intuitive for both iterations. There are next to no differences, and the devices offer extensive capabilities.
| Capability | Mini Maxx V1 | Mini Maxx V2 |
|---|---|---|
| Power level | 4 switchable tunes: Stock, Mild, Wild, Hot | Vehicle-specific tuning files that allow for adjustable performance |
| Comprehensive Diagnostics | Reads and clears common codes( P0XXX Series, P242F) | Advanced clearing (UXXXX Series, Limp Mode removal, etc.) |
| Possible deletes | DPF, EGR, and DEF | DPF, EGR, and DEF |
| Transmission tuning | Overdrive transmission tuning (e.g., 2006-2012 Dodge Cummins) | Not supported |
| Customizable tuning | Pre-loaded tunes only with possible third-party MCC tunes | Pre-loaded tunes only with possible third-party MCC tunes |
| EGT/Pyrometer support | Not supported (aftermarket kit required) | Not supported (factory EGT probes must be unplugged; separate docking station needed) |
| Defueling | Supported (Pyro 1, Pyro 2, Engine Coolant Temp, etc.) | Supported (Pyro 1, Pyro 2, Engine Coolant Temp, etc.) |
| Performance Testing | Available (1/4 test, 0-60 mph test) | Available (1/4 test, 0-60 mph test) |
What Are the Benefits of Using Mini Maxx Tuners?
No matter the device you pick, both tuners offer various benefits. They range from and are not limited to:
- Considerable HP boost. You can enjoy a boost of up to 250+ HP and increased torque.
- Improved fuel efficiency. On average, drivers report improvements of up to 5 MPG;
- Real-time monitoring. A tuner serves as a real-time gauge display, showing parameters like EGTs and transmission temperature;
- Hassle-free troubleshooting. It reads and clears Diagnostic Trouble Codes (DTCs), making it easy to resolve engine issues.
A Quick Installation Guide
You’ll receive a detailed manual upon completing your TheDPFDelete purchase. It will either be shipped with the device or sent to you via email. The steps and other related details will depend on the year, make, and model of your truck.
Depending on the pre-installed tuner firmware version, you may need to update the Mini Maxx device. V1 should already have the latest version pre-installed, but for V2, visit the official website1.
General tips before installation:
- Check Fuses (for GM models);
- Ensure your vehicle battery is connected to a charger;
- Turn all electronics off (stereo included);
- Don’t interrupt any Mini Maxx V1 or V2 firmware updates.
Is the Mini Maxx Series Street-Legal?
Like most tuners, the Mini Maxx series is designed for off-road and racing use, and is legal in several countries. In the US, vehicles used on public roads must comply with the Clean Air Act, which governs emissions system modifications. 2
For off-road builds, competition vehicles, and track use, the Mini Maxx is a proven and widely used solution. If you plan to use your truck on public roads, it’s worth checking your state’s emissions inspection requirements before making any modifications.
Can the Mini Maxx V1 and V2 Void Your Warranty?
In most cases, the answer is yes. Flashing the ECU gives manufacturers grounds to deny claims on any component linked to the modification. Modern ECUs also log tune history, so reflashing back to stock before a dealer visit won’t hide it. For delete builds, denial is straightforward, as you’re clearly missing hardware. The Magnuson-Moss Warranty Act limits voidance, but manufacturers can and do deny specific claims tied to the modification.3
Choosing the Best Tuner for the Job
When it comes to which race tuner is best for you, you need to consider three major factors: year, model, and make.
Mini Maxx V1 Tuner is ideal for older platforms, like Ford 6.4L Powerstroke (2008-2010) or the 6.0L (2003-2007) version. It fully supports pre-2013 vehicles, allowing you to gain up to 175 hp, achieve excellent fuel efficiency, and tune your diesel performance to its maximum potential. It has a reputation for stability and reliability.
You can browse through these bundles available on our site:
- Ford Powestroke 6.4L – Full Delete Bundle, 2008-2010

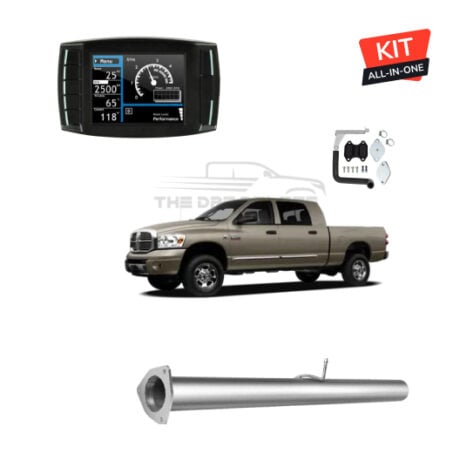

- RAM Cummmins 6.7L – Full Delete Bundle, 2007.5-2009
- RAM Cummmins 6.7L – Full Delete Bundle, 2010-2012
Mini Maxx V2 Tuner, on the other hand, works well on modern RAM Cummins, Chevy Duramax, or Ford Powerstroke diesel engines. It comes with newer software and a better UI that is intuitive and easy to follow. The device allows you to customize your diesel tuning experience, with 250 maximum hp gains, and fit it specifically to your needs.
As before, here are a few bundle recommendations:

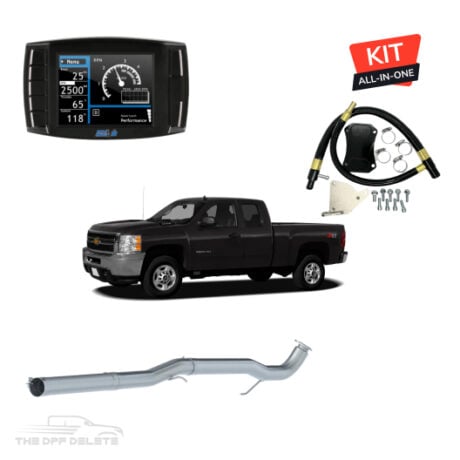

- GM Chevy/Duramax 6.6L LML – Full Delete Bundle, 2011-2015

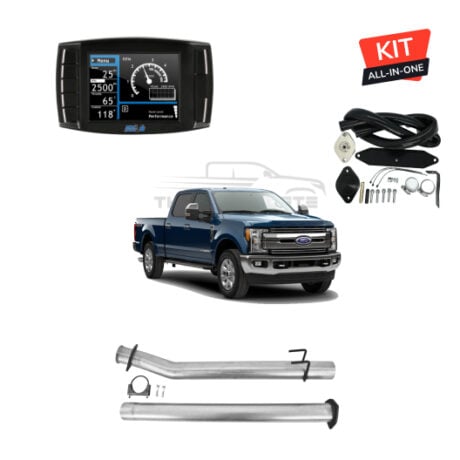

- Ford Powestroke 6.7L – Full Delete Bundle, 2011-2019
- RAM Cummins 6.7L – Full Delete Bundle, 2007.5-2009
As long as you ensure your diesel truck is compatible, both tuners should provide long-lasting power and efficiency with zero compromises.
