Description
For OFF-ROAD and RACING Use Only
Full Delete Kit DPF/DEF/EGR for RAM 6.7 Cummins Cab & Chassis 2019-2020

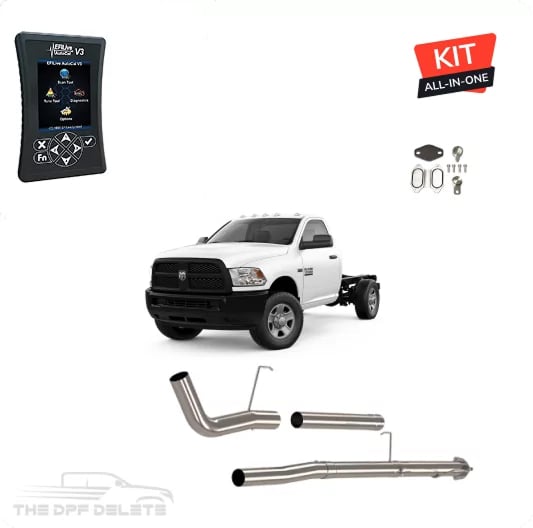

The 2019-2020 RAM 6.7 Cummins Cab and Chassis delete kit w/ EFI Live AutoCal V3 tuner is a complete package designed specifically for commercial-frame 6.7L Cummins trucks. It combines custom ECM tuning with the hardware required to replace the factory DPF/CAT section and remove the EGR valve and cooler assembly for off-road or competition use. The bundle includes EFI Live AutoCal V3, custom delete tuning, DPF/CAT delete pipe, EGR valve and cooler delete components, installation hardware, and supporting parts required for the selected configuration.

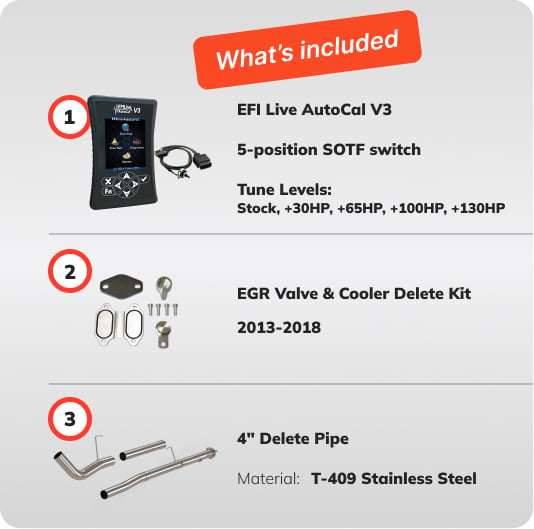

What’s Included
This 6.7 Cummins Cab and Chassis delete kit is configured specifically for C&C applications rather than adapting parts and tuning intended for standard pickup trucks.

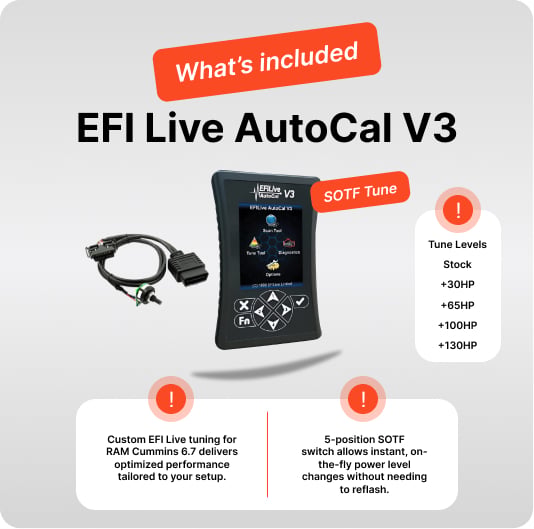

- EFI Live AutoCal V3 Tuner – A professional tuning interface used to transfer and flash the supplied custom calibration to the truck. The device also supports data logging, allowing vehicle information to be recorded when required for tuning support or troubleshooting.
- Custom ECM Delete Tuning – Vehicle-specific calibration developed for the supported 2019-2020 Cummins Cab & Chassis ECM strategy. Available power levels and SOTF capability depend on whether the ECM-only or ECM + TCM tuning configuration is selected.
- DPF/CAT Delete Pipe – Replaces the applicable factory aftertreatment section with a less restrictive exhaust path. The supplied pipe is designed around the Cab & Chassis exhaust configuration rather than standard pickup routing.

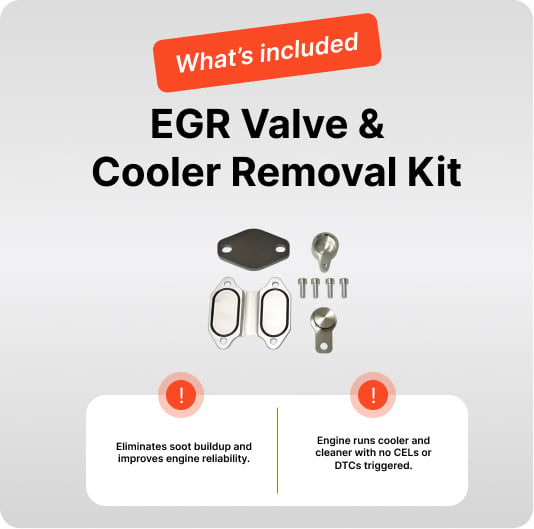

- EGR Delete Kit – Includes the components supplied for removal of the factory EGR valve and cooler assembly and blocking the applicable EGR passages for the intended off-road configuration.
- Optional TCM Tuning – Select None, 68RFE, or AISIN when ordering. Selecting a transmission tune changes the tuning package, available engine power settings, and SOTF availability.
This All-in-One bundle keeps the tuner, custom tuning, exhaust pipe, EGR components, and supporting hardware together as one package.
Important Information about EFI Live AutoCal V3 Tuner & Tuning
EFI Live AutoCal V3 is a custom-tuning interface rather than a generic programmer loaded with universal tunes. The device works with calibration files prepared for the specific truck and can be used to transfer tunes, flash the ECM, and record data logs when requested by technical support.
The tuning configuration for this Cab & Chassis package depends on the TCM Tune option selected when ordering.
When TCM Tune: None is selected, the package includes ECM-only tuning with SOTF capability and four available engine power levels: Stock, +65 HP, +100 HP, and +130 HP.
When 68RFE or AISIN TCM tuning is selected, the truck receives a combined ECM + TCM tuning package. This configuration uses a single engine tune rather than SOTF, with the engine calibration available at 0 HP or +60 HP.
This distinction is important because the ECM-only and ECM + TCM options are different tuning configurations, not the same ECM tune with an optional transmission file added to it.
Important: If you initially purchase the ECM-only configuration by selecting TCM Tune: None, transmission tuning cannot simply be added to that existing tuning package later. Adding TCM tuning afterward requires a new ECM + TCM tuning package.
Tune Power Settings
Available engine power levels and SOTF functionality depend on the tuning configuration selected when ordering.
| Tuning Configuration | Engine Power Levels | SOTF | TCM Tuning |
| ECM Only – TCM Tune: None | Stock, +65 HP, +100 HP, +130 HP | Yes | No |
| ECM + 68RFE Tuning | Single tune: 0 HP or +60 HP | No | Yes |
| ECM + AISIN Tuning | Single tune: 0 HP or +60 HP | No | Yes |
The ECM-only configuration provides the widest range of selectable engine power levels, with SOTF settings from Stock through +130 HP.
Customers who select transmission tuning receive a matched ECM + TCM package with a fixed 0 HP or +60 HP engine calibration. This configuration is intended to coordinate engine and transmission tuning as one package rather than treating the TCM calibration as a separate add-on.
Higher engine output places additional demand on the engine, transmission, fuel system, cooling system, and other supporting components. Vehicle condition, body/upfit weight, axle ratio, tire size, load, and intended use should always be considered when selecting a power level.
Key Features
The 2019-2020 6.7 Cummins C&C delete kit is engineered around the different hardware and tuning requirements of commercial RAM chassis trucks. The exhaust pipe replaces the applicable factory DPF/CAT aftertreatment section, while the custom EFI Live calibration changes the ECM strategy to match the modified emissions system.
The package also allows the tuning configuration to be selected according to whether the customer needs engine tuning only or matched engine and transmission tuning.
- ECM-Only SOTF Tuning – Selecting TCM Tune: None provides Stock, +65 HP, +100 HP, and +130 HP engine settings with SOTF capability.
- ECM + TCM Tuning – Selecting 68RFE or AISIN provides a combined engine and transmission tuning package with a single 0 HP or +60 HP engine tune.
- Transmission-Specific Options – TCM tuning is selected according to the actual 68RFE or AISIN transmission configuration.
- C&C-Specific Calibration – Tuning is configured for supported Cab & Chassis applications rather than standard RAM pickup calibration.
- DPF/CAT Exhaust Replacement – The supplied pipe replaces the restrictive factory aftertreatment section for the intended off-road configuration.
- Complete EGR Hardware – Includes physical EGR valve and cooler removal components instead of relying on tuning alone.
- EFI Live Data Logging – AutoCal V3 can record vehicle data for technical support and custom-tuning diagnostics.
- Commercial-Truck Fitment – Designed for RAM 3500, 4500, and 5500 Cab & Chassis models rather than standard pickups.
Fuel economy should not be advertised with a guaranteed MPG increase. A commercial truck’s fuel consumption is heavily affected by body/upfit weight, axle ratio, idle hours, towing load, route, tire size, tune selection, and driving style.
Vehicle Fitment
- Years: 2019, 2020.
- Make: RAM.
- Models: RAM 3500, RAM 4500, RAM 5500.
- Engine: 6.7L Cummins Turbo Diesel.
- Body Style: Cab & Chassis (C&C) only.
- Standard Pickup Models: Not compatible.
The 2019-2020 Ram 3500, 4500, and 5500 Cab & Chassis delete kit is specifically configured for C&C trucks.
Important: This is not a standard RAM 2500/3500 pickup delete kit. Cab & Chassis trucks can use different ECM calibration, exhaust routing, frame layout, fuel-tank positioning, and supporting hardware.
Before ordering, verify the VIN, model, true Cab & Chassis configuration, transmission, and current exhaust setup. If TCM tuning is required, the correct 68RFE or AISIN option must be selected with the original tuning package.
If you select TCM Tune: None, you will receive the ECM-only SOTF configuration. A transmission tune cannot later be added by itself to this ECM-only package; converting to transmission tuning requires a new ECM + TCM tuning package.
Installation
An installation guide is provided with the package. Owners or technicians with solid diesel mechanical experience can complete the installation, although commercial truck upfits can make access more difficult than on a stock pickup.
Estimated Time
- 2-3 hours – Tuner and straightforward delete-pipe work where access is unrestricted.
- 3-5 hours – Complete exhaust and EGR valve/cooler installation.
- Additional time – May be required on trucks with service bodies, aftermarket fuel tanks, heavy corrosion, or other commercial upfits.
Required Tools
- Metric socket set, 3/8-inch and 1/2-inch drive.
- Ratchet with extensions.
- Metric wrench set.
- Jack and heavy-duty jack stands or a suitable vehicle lift.
Optional / Recommended Tools
- Penetrating oil such as WD-40 or PB Blaster.
- Torque wrench.
- Appropriate sensor socket where required.
Tuning Requirements
EFI Live AutoCal V3 normally uses a Windows laptop and the corresponding EFI Live software for file transfer and the tuning workflow.
Vehicle information or a stock file may need to be read from the truck before the final custom calibration is supplied. Follow the provided instructions exactly and maintain stable battery voltage throughout the ECM flashing process.
For the ECM-only configuration, the supplied tuning provides the supported SOTF power levels. If 68RFE or AISIN transmission tuning is selected, the ECM and TCM calibrations are supplied as a matched tuning package and should be installed according to the provided programming procedure.
Installation Notes
Common difficulties include seized exhaust fasteners, restricted access around the EGR cooler, and interference from commercial body equipment or other upfits.
Cab & Chassis trucks vary significantly once service bodies and aftermarket equipment are installed. For fleet or work vehicles where downtime is important, installation by a diesel/performance shop familiar with EFI Live and commercial RAM trucks is recommended.
Why Choose TheDPFDelete?
- Cab & Chassis Specialization – The package is configured around the specific requirements of commercial RAM chassis rather than treating C&C and pickup trucks as interchangeable.
- Two Tuning Configurations – Choose ECM-only SOTF tuning or a matched ECM + TCM package according to the truck and intended setup.
- Configuration Verification – Our team can help confirm the model, Cab & Chassis body style, transmission, and required tuning configuration before the package is prepared.
- Matched Components – Tuner, custom tune, DPF/CAT pipe, EGR components, and supporting hardware are supplied as one complete package.
- Technical Tuning Support – Assistance is available for EFI Live file transfer, ECM/TCM flashing, data logging, and tuning questions.
- Installation Support – Our technical team can also help with fitment and installation questions if something is unclear during the job.
- Fast Delivery – Typical delivery is approximately 4-5 days, depending on destination, component availability, and the selected configuration.
- Direct Technical Contact – Call +1 888-688-8399 or email order@thedpfdelete.com. Our technicians actively monitor email and can quickly help with fitment, installation, and tuning questions.
